The Engine Fault Code P0141 : Symptoms – Causes and Solutions

The Engine Fault Code P0141 : Symptoms – Causes and Solutions. Fault codes are an unavoidable part of car ownership, regardless of engine type. Issues become more common as engines and related components age. Engine codes exist to help you understand potential problems with your vehicle’s internal systems. This allows you to pinpoint the problem more easily rather than through trial and error.

Engine fault codes are also known as diagnostic trouble codes, or DTCs for short. P0141 is a common DTC for a wide range of vehicles from various manufacturers. The P0141 code is a generic OBDII engine code that usually means the same thing no matter what vehicle you have. This guide will go over the P1014 DTC, explain what it means for your specific vehicle, and go over some of the most common fixes.

The Engine Fault Code P0141 : Symptoms - Causes and Solutions

P0141 Fault Code Definition

P0141 – Downstream O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 2)

With most engine fault codes, determining the exact cause of the code can be difficult. This is because, in many cases, especially with powertrain DTCs, a number of different failing parts can all contribute to the same overall problem. The good news about the P0141 engine code is that it can only be caused by one component: the vehicle’s downstream O2 sensor.

P0141 is a universal OBDII code, which means it means the same thing regardless of your vehicle. The P0141 error code typically indicates a problem with an O2 sensor heating element.

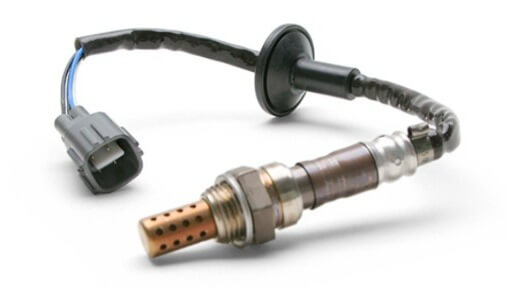

O2 sensors monitor your vehicle’s exhaust gases and report air/fuel information to the engine control module. When you start your vehicle, O2 sensors commonly use an integrated heating element to quickly reach operating temperature. A P0141 code is usually caused by a faulty O2 sensor heater element. This could indicate a short in the circuit, excessive resistance in the heater circuit, or that the heater element has failed over time.

DTC P0141 Code Interpretation

While the P0141 code appears to be a random collection of letters and numbers, each digit has a rhyme and reason. Breaking down the code into its individual digits can help to clarify the code.

The ‘P’ that appears before the numbers in the code denotes a powertrain fault. All codes beginning with ‘P’ indicate a powertrain fault of some kind. The ‘0’ digit after that indicates that the code is not manufacturer specific. The P0141 error code can appear in any OBDII-equipped vehicle. The first ‘1’ indicates that the code is related to the vehicle’s fuel and air metering system in some way.

The final two digits represent the specific malfunctioning part. In this case, it indicates that one of the vehicle’s downstream O2 sensors is malfunctioning, specifically the sensor located further down the exhaust system. It also includes the fact that the problem is limited to Bank 1 of the engine, or the side of the engine containing cylinder 1.

DTC P0141 Symptoms

Because the P0141 code is typically triggered by a single component, symptoms are relatively consistent. Here are some of the symptoms associated with a P0141 DTC in your vehicle:

  • Engine light on
  • Emissions test failure
  • A powerful engine with poor fuel economy

Other than a check engine light, there isn’t much to indicate that a P0141 code is present on your vehicle. Because a P0141 code is specific to the heating element within the O2 sensor rather than the sensor itself, there are unlikely to be any significant drivability changes as a result.

Because the P0141 DTC is directly related to the vehicle’s exhaust system, an emissions test would provide an immediate indication of the code. The vehicle would fail an emissions test if the code was present.

Causes of Engine DTC P0141

As previously stated, the P0141 code can be caused by a number of different issues, all of which involve the downstream bank 1 O2 sensor. These are some of the causes:

  • O2 sensor heater that is faulty or failing (Most common)
  • O2 sensor wiring/plug failure (Somewhat common)
  • Catalytic converter that is faulty or failing (Rare)

The vast majority of the time, a P0141 code is caused by a malfunctioning O2 sensor heater. Because O2 sensors are a maintenance item on all vehicles, they frequently fail after a certain mileage interval or period of time.

The second most common cause of a P0141 code is a problem with the circuitry that supplies power to the O2 sensor and internal heater. The wires or plug connected to the O2 sensor can become damaged at times, usually due to an electrical anomaly. Obviously, the repair process is more involved than replacing an O2 sensor.

While uncommon, a P0141 code can be caused indirectly by a failing catalytic converter, which can affect the air/fuel readings relayed to the EMU by a downstream O2 sensor.

What is the severity of Fault Code P0141?

Severity Level: Moderate

In terms of the overall severity of a P0141 code, it is usually not an urgent issue. Unlike many other powertrain issues and codes, a P0141 does not immediately affect drivability. It is still possible to drive while a P0141 is present.

That being said, it is best to have your vehicle repaired as soon as possible. In most states, a check engine light will cause a vehicle to fail an emissions test. This is especially true because the P0141 code is directly related to the exhaust system. Other issues may arise over time as a faulty O2 sensor causes inaccurate readings to your vehicle’s EMU. Spark plugs may accumulate more carbon than usual and foul more quickly as a result.

The Engine Fault Code P0141 : Symptoms - Causes and Solutions

Identifying a P0141 Code

If you are aware that your vehicle is displaying a P0141 code, you have most likely used an OBD scanner tool to read your vehicle’s stored codes. Aside from reading the code, there are a few procedures you can use to narrow down the exact cause of the code.

Checking the resistance of the O2 sensor heater plug terminals is one of the most important steps Eric covers. As he states in the video, this is an excellent method for determining whether the code is caused by the O2 sensor or the circuitry surrounding it.

As he shows in the video, you can use a digital multimeter to test the O2 sensor heater power supply wires. The O2 sensor plug will typically have a four-pronged terminal that plugs into the sensor itself. You can test the plug’s resistance by contacting the lower terminals with the multimeter prongs. If the plug has extremely high or infinite resistance, the O2 sensor heater is almost certainly to blame.

If the plug has a relatively low resistance reading, the O2 sensor is unlikely to be the problem. In that case, you can also check the voltage on the harness side of the plug to see if it is receiving enough power. When the ignition is turned on, the plug should receive 12V of power.

Understanding the Difference Between Banks 1 and 2

The P0141 code is specific to your vehicle’s downstream O2 sensor on bank 1 of the exhaust system. It is critical to understand the distinction between bank 1 and bank 2 so that you do not replace parts on the incorrect side.

Bank 1 refers to the side of the engine containing cylinder 1. Unfortunately, there is no consistent rule for determining which side of an engine cylinder 1 is located. Depending on your vehicle, Bank 1 can be located on either the driver or passenger side. Fortunately, that information is easily accessible via a quick Google search or within your vehicle’s owner’s manual.

Location of the Downstream O2 Sensor

In addition to determining the location of bank 1, it is critical to determine which O2 sensor is affected by the P0141 code. Most modern vehicles have at least four O2 sensors in their exhaust system, typically two on each engine bank. Each side has two O2 sensors, one upstream and one downstream, each with its own function.

Upstream O2 sensors are installed prior to the vehicle’s catalytic converters and assist the ECM in determining the proper air/fuel mixture. Downstream O2 sensors are located behind or in the center of the vehicle’s catalytic converters, allowing the vehicle to determine catalytic converter efficiency. Because the P0141 code is concerned with the downstream sensor, it will be located on the bank 1 side behind the catalytic converter closest to the engine.

P0141 Fault Code Repair

As previously stated, there are several possible causes for the P0141 error code. As a result, the code fix may differ slightly. If the code is caused by a faulty O2 sensor heater, the bank 1 downstream O2 sensor must be replaced. This is most likely the best case scenario, as O2 sensor replacements are generally fairly cheap and can even be done yourself if you have some automotive repair knowledge.

If the P0141 code is not caused by a faulty O2 sensor heater, repairing your vehicle’s electrical system may be more difficult and expensive. If the O2 sensor plug is the problem, the repair should be relatively quick and simple. However, if the plug isn’t receiving the necessary power to power the O2 heater for some reason, it could be a more difficult repair.

Repair Cost for P0141 Engine Code

The cost of repairing a P0141 code is determined by the issue that caused it. Some of the costs associated with the most likely causes of a P0141 code are listed below:

  • Replacement of an oxygen sensor costs between $155 and $380.
  • Replacement of an oxygen sensor plug costs between $75 and $150.
  • Repair of various electrical systems – $150-$500

All of the costs listed above are also affected by the tools, resources, and assistance available to you. The cost of these repairs can also vary significantly depending on the type of vehicle you own. If you can do it yourself, a P0141 fix can be a relatively simple and inexpensive job. However, if you aren’t mechanically inclined or don’t believe you’ll be able to complete the repair correctly, it’s worth paying the extra money to have it done professionally.

Even if you take your vehicle to a certified repair facility, this is usually not an expensive problem to fix. Unless there is a serious underlying problem with your vehicle’s electrical system, you should expect to pay between $155 and $300.

Related : The Wheels for Nissan 370Z

P0141 Engine Code Frequently Asked Questions

The term “electronic commerce” refers to the sale of electronic goods. This section serves as a summary.

What Does P1014 Fault Code Mean?

The P0141 code is a generic OBDII engine code that usually means the same thing no matter what vehicle you have. A P0141 code is usually caused by a faulty O2 sensor heater element. This could indicate a short in the circuit, excessive resistance in the heater circuit, or that the heater element has failed over time.

How Do I Repair an Engine Code P0141?

A failed bank 1 downstream O2 sensor heater is the most common cause of a P0141 engine code. As a result, the most common fix for the code is an O2 sensor replacement. A P0141 code can occasionally be caused by faulty wiring or an O2 sensor plug. While a new plug is relatively simple and inexpensive to install, a more serious wiring problem can be costly and difficult to diagnose.

Is it safe to drive with the P0141 fault code?

In most cases, the P0141 code will not endanger you or others in your vehicle right away. Symptoms of the problem could include a check engine light, a failed emissions test, or excessive carbon buildup on spark plugs. A P0141 code, while not immediately dangerous, should be addressed as soon as possible. A faulty O2 sensor is hazardous to the health of your vehicle’s engine.

Of course, use your discretion. If your vehicle begins to feel unsafe to drive, or if the symptoms worsen, it is a good idea to stop driving until the problem can be repaired.
