The Fuse Box Diagram 2001 Ford F150

The Fuse Box Diagram 2001 Ford F150. Fuses provide electricity to almost every electrical system in your F150. A fuse is used for power supply in almost all systems that require electricity to operate. The battery in your Ford supplies power to the fuses and relays, which subsequently deliver power to the system to which the fuse is set. Fuses keep your electrical systems safe by preventing the batteries from overheating and ruining the wiring.

Fuses are designed to carry certain amounts of electricity, measured in amps. When a fuse is overloaded, or receives more amps of power than it can transmit, it breaks. The term “blown fuse” is commonly used. When you have an electrical problem with your F150, check the fuse to see if it is blown before taking it to a mechanic.

Finding and replacing fuses is fairly simple, which is why we always recommend checking them before asking a repair to diagnose the problem. Fuse not only power but also protect electrical systems. If your stereo were overloaded and there was no fuse, your stereo system would be destroyed. However, because a fuse connects the power source and the stereo, the fuse blows, preventing all electrical currents from passing to the stereo and causing it to break.

Fuse Types for a Ford F150

Fuses are available in a variety of power ratings, sizes, and colors. In general, the colors signify the number of amps that the fuse can sustain, however this number is frequently marked on the top of the fuse as well. It is critical to use the right sized fuses since using too tiny a fuse will cause the fuse to repeatedly break and using too large a fuse will cause the system it is powering to break.

The majority of fuses will fit in the same fuse position. For example, a 5, 10, 15, and 20 amp fuse are all typically the same size. Because they all fit in the same slots, it is critical to consult your fuse box diagram to ensure you are using the correct sized fuse.

Blade fuses are typically used in the 2001 F150. There are several types of blade fuses, as listed below, although the majority of those used by Ford are ATO or normal sized fuses. Ford does, however, utilize some larger cartridge style fuses.

Furthermore, relays are used in all automobiles. Relays are used to open and close electrical circuits, whereas fuses are constantly open. Because practically all electrical systems in your car turn on and off, such as your headlights, relays are required to open and close the circuit to turn them on and off.

Fuse Box Location on a 2001 Ford F150

There are two fuse boxes in the 2001 F150. One can be found inside the cab, to the left of the steering wheel. The second F150 fuse box is on the driver’s side, near the upper right corner of the engine compartment.

The interior fuse box is primarily responsible for controlling inside electrics such as the stereo, lights, and power windows, whereas the engine bay fuse box is in charge of towing components, exterior lights, windshield wipers, and numerous engine-related systems such as the fuel pump.

Each fuse box is labeled and has its own diagram. It’s worth noting that the inside fuse box is referred to in the owner’s handbook as the “passenger compartment fuse panel,” although the fuse box is located to the bottom left of the steering wheel, not on the passenger side of the car.

Related : The 5 Typical Ford 460 Engine Issues

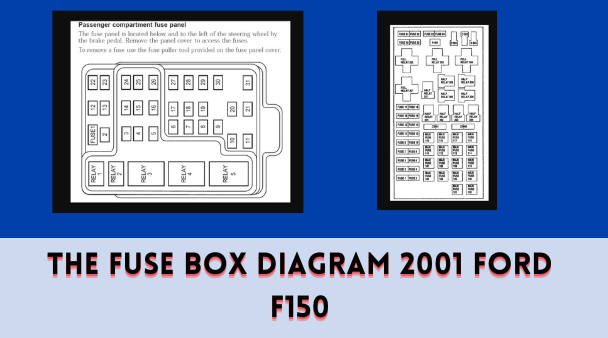

Fuse Box in the Passenger Compartment of a 2001 Ford F150

The Fuse Box Diagram 2001 Ford F150

2001 F150 Engine Fuse Box Diagram

The Fuse Box Diagram 2001 Ford F150
