The Upgrades for the Ford 5.4 Triton Engine

The Upgrades for the Ford 5.4 Triton Engine. After more than 30 years of service, the Ford Windsor V8 was replaced in 1990 by a new V8 built from the ground up. The Ford Modular V8 series debuted with the 4.6L V8, which found instant popularity under the hood of popular cars such as the Ford Explorer, Crown Victoria, and F-Series. In 1997, Ford introduced the Modular 5.4L Triton to replace the 5.8L 351 Windsor in Ford F-Series pickups. The 5.4L Triton V8 engine would remain the engine of choice for Ford F-Series pickups, as well as other Ford lines such as the E-Series and Navigator, until 2010, with some versions of the engine being utilized until 2017.

The power of the Ford 5.4 Triton varies greatly depending on the type. The 5.4 V8’s 2-valve SOHC models produce between 235 and 380 horsepower. Tritons with three valves SOHC create between 295 and 327 horsepower. Finally, 4-valve DOHC 5.4 Tritons generate 300 to 550 horsepower. Regardless of the version, there are numerous ways to increase horsepower and decrease quarter-mile times. We’ll go through five of the greatest 5.4 Triton engine improvements, including bolt-ons and more extensive changes, in this guide.

The Upgrades for the Ford 5.4 Triton Engine

Engine Specifications for the Ford 5.4 Triton

Before we get into altering the Ford 5.4 Triton, let’s take a look at the V8 in stock form. The cast iron block and aluminum cylinder head are used in the majority of 5.4 Triton V8 versions. The 5.4 V8 engine used in the Ford GT, which is entirely made of aluminum, is an exception. Several alterations were made to the 5.4 Triton during its development cycle, with the cylinder head and valvetrain receiving the most attention.

The Triton V8 was first produced in 1997 with a 2-valve, SOHC layout. The 5.4 was originally upgraded by Ford in 1999, when a 4-valve DOHC cylinder head was added to the Lincoln Navigator. This 4-valve DOHC type was used in the majority of Ford performance automobiles of the time. The Shelby GT500, Ford GT, and Mustang SVT Cobra R are among the most popular models. Finally, in 2002, Ford introduced a 3-valve SOHC cylinder head with variable camshaft timing to the engine.

Both the 2-valve SOHC and 4-valve DOHC 5.4 Ford V8 models were available in naturally aspirated and supercharged configurations. To accommodate the increased forces, most supercharged models included a forged steel crankshaft.

Power Limits of the 5.4 Triton V8

With engine improvements, a 5.4L Triton may produce two to three times more power. A Triton with stock internals, on the other hand, will not be able to withstand the increased heat and stress. As a result, it is critical to consider what the engine’s standard block and internals can withstand before failing. A lot more horsepower is only useful if the engine doesn’t fail as a result of your changes, so let’s first discuss the basic 5.4 Triton horsepower and torque restrictions.

Because the Ford 5.4 V8 has a cast iron block, the bottom end can handle a significant increase in horsepower over the factory rating. Most 5.4 Triton fans claim that the cast iron block can easily support 800 horsepower. Other bottom-end components, such as the cast connecting rods and pistons in non-blown 5.4 models, will begin to fail around 450 horsepower. Any higher than 450 horsepower, you’ll need to consider forged internals, particularly forged pistons and connecting rods.

Another key constraint is the standard 5.4 Triton fuel system. In general, the factory injectors are only capable of producing roughly 310-320 horsepower. The factory fuel pump will push the output up to roughly 350 horsepower. If you intend to exceed that limit, you should consider updating your Triton’s fuel system.

The Top 5 5.4L Triton Engine Upgrades

Because the 5.4 Triton V8 is such a popular engine, there’s a plethora of upgrades available for it. Here are our picks for the top 5.4 Triton engine improvements, narrowed down a bit:

  • Upgraded Filter / Performance Intake
  • Tuner
  • Back Exhaust Cat
  • Headers
  • Supercharger

We’ll go into further detail in the parts that follow. First, here’s an overview of the top 5.4 Triton performance changes and how they boost performance.

Airflow is a huge aspect in getting the most out of a Ford Modular V8. Whether through increased intake flow or increased exhaust flow, getting air into and out of the engine more effectively than the stock setup will result in a big performance improvement.

A premium F150 exhaust system, such as a cat-back exhaust and header combo, combined with a strong cold air intake will increase numerous areas of performance from a 5.4 V8. A cold air intake will lower intake air temperatures while simultaneously increasing engine airflow. A Triton downpipe and cat-back exhaust will alleviate OEM exhaust limits. This improves fuel efficiency and makes your truck sound a lot nicer while also enhancing performance.

A good 5.4 Triton tuner will also assist unlock engine performance in a variety of ways. Whether you choose a plug-and-play tuner or a tuner with custom tuning capabilities, both will modify engine characteristics to get the most out of your Ford V8.

A supercharger is another method to get big power out of your Triton. While superchargers produce enormous power gains, they are quite expensive and frequently necessitate further upgrades to reduce the danger of engine damage.

1) 5.4 Triton Performance Intake / Filter Upgrade

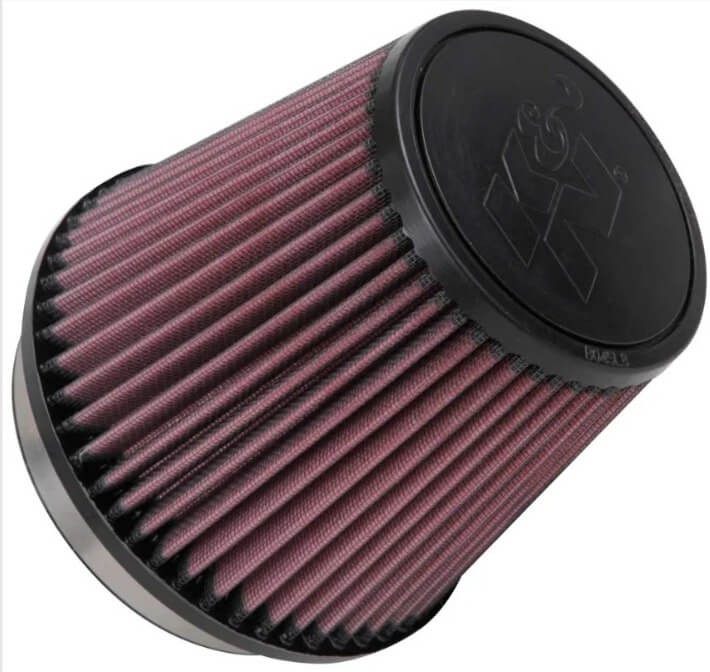

Recommended K&N 5.4 Triton Upgraded Intake Filter Triton Air Intake Filter 5.4

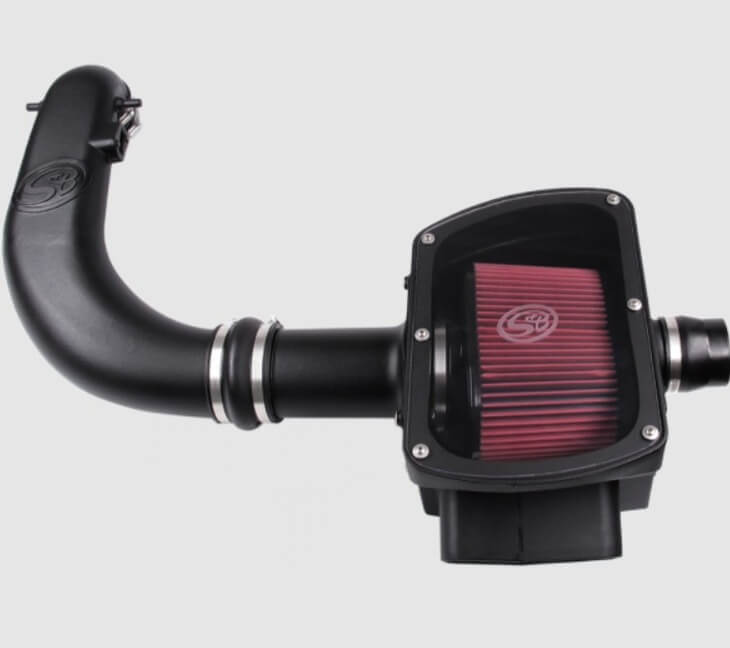

Recommended S&B 5.4 Triton Performance Air Intake Triton Performance Air Intake 5.4

In actuality, the stock 5.4 Triton V8 airbox isn’t all that bad. Its overall design is functional, however it is constrained in a handful of aspects. For one thing, Ford opted to make the factory plastic intake pipping noise-canceling. The stock design, by chance, raises air pressure within the intake. This is a concern at low speeds, because increasing intake air pressure might limit flow slightly.

The factory 5.4 Triton intake design, however, is not the most important constraint in the system. That undesirable prize is given to the factory filter. While the factory 5.4 Triton air filter isn’t bad, there are better-designed aftermarket options. K&N offers the best filter for the 5.4 Ford V8, and there is plenty of proof to back it up. When combined with the factory F150 airbox, the bigger K&N cone filter can significantly improve flow. Some claim that only switching to a K&N filter will yield the same results as replacing the entire intake unit.

While you may be able to get by with just an updated Triton intake filter, there is some benefit to purchasing a whole Triton V8 performance intake. As previously stated, the stock intake tubing design has a flaw. To avoid increasing internal air pressure, some aftermarket businesses, such as S&B, have eliminated the intake tubing’s severe 90-degree bend. This will result in somewhat improved performance at low revs.

2) Tuner for Ford 5.4 V8

DiabloSport inTune is a recommended plug-and-play 5.4 Triton tuner.

The Upgrades for the Ford 5.4 Triton Engine

SCT X4 is a recommended 5.4 Triton tuner with custom tuning.

A professional Triton tuner is the best value for money when it comes to 5.4 Triton engine enhancements. Finally, there are two options available here. One solution is to buy a plug-and-play tuner pre-loaded with 5.4 Triton tracks. Alternatively, you can purchase a standalone tuner that enables custom tuning. This option is based on how involved you want to be in the tuning of your Ford truck.

Plug-and-play Ford Triton tuners come with pre-programmed canned tunes. In that instance, simply putting the tuner into your OBD port and picking one of the tunes will result in performance benefits. Plug-and-play 5.4 Triton tuners often come with a variety of canned tunes for various power levels and octane ratings. The preloaded tunes frequently adjust shift positions, throttle responsiveness, and other aspects that will dramatically liven up your truck. This is a wonderful alternative for 5.4 F150 owners looking for a quick and easy 25-50 horsepower boost.

The other alternative is to get a 5.4 Triton tuner with custom tuning capabilities. These tuners, like the SCT X4 tuner, often include some preset tunes but also allow for custom tuning via proprietary software. You’ll be able to alter practically every engine parameter with a Triton tuner that supports custom tuning, including fuel curves, ignition timing, fan control, shift points, and much more.

This is the greatest option for anyone who wants to be significantly involved in their truck’s tuning process. It is also the choice with the greatest performance increases because you can adjust everything to your truck specifically.

3) V8 5.4 Cat Back Exhaust

Magnaflow Ford F150 Dual Exit Cat Back Exhaust is a recommended 5.4 Triton Cat-Back Exhaust.

Improving exhaust flow, as with other engines, is critical to obtaining greater power from a 5.4L Triton. While a cat-back exhaust will not deliver substantial performance benefits on its own, when combined with aftermarket headers, a 3.0″ 5.4 Triton cat-back exhaust can provide some fair improvement. The actual reasons to install a 5.4 V8 cat back are for more sound and a better-looking exhaust peeking out the back end. Because the standard F150 exhaust has a lot of sound deadening, it can really minimize the importance of your 5.4 V8 under the hood. A 3.0″ Triton cat-back will give the ideal balance of external and interior noise.

Of course, it is all dependent on the cat-back you select. Some Triton cat-backs are more audible than others. In general, the Flowmaster 50 Series, Magnaflow 16520, and Borla XR1 appear to be the fan-favorite cat-back options in the F150 community. You’ll also need to evaluate the type of exhaust you want. For the F150 and other 5.4 Triton-equipped trucks, there are numerous single-exit, dual-exit, and side-exit variants.

This will determine where the exhaust noise is coming from, in addition to the visual difference. While side exit exhausts look good, if they’re loud enough, they’ll drown out your back passenger’s talk.

4) Triton Headers (5.4)

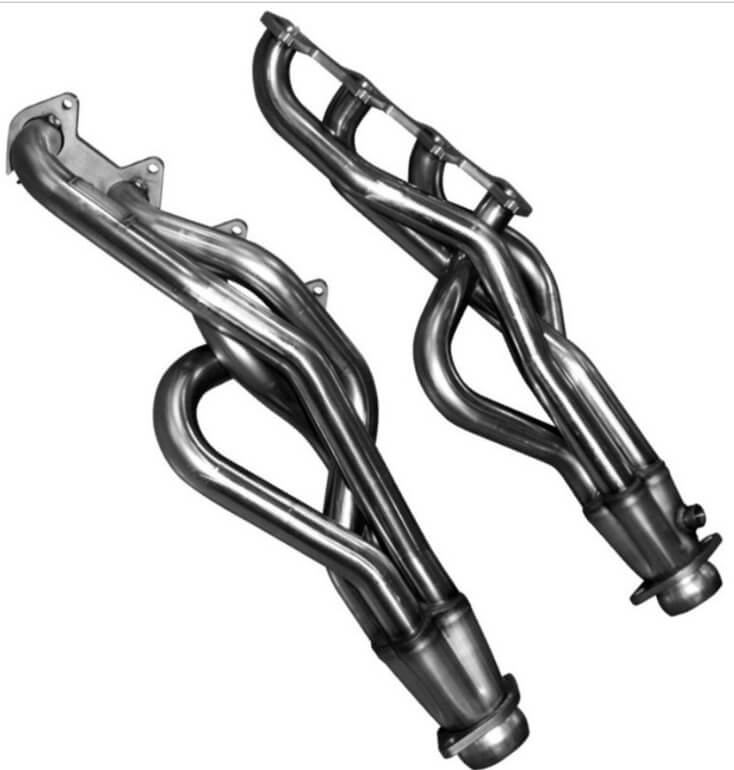

Kooks 1-5/8′′ F150 Long Tube Headers are recommended for 5.4 Triton Long Tube Headers.

Unlike cat-back exhausts, which only provide minor performance benefits, improved F150 headers can significantly improve performance. Headers are critical in moving exhaust gas away from the engine since they replace the factory intake manifolds and are the first component in the exhaust system. As a result, 5.4 Triton headers engineered for high flow are better at ejecting exhaust gas, freeing up some previously snarled horsepower.

Short-tube headers and long-tube headers are both available for the Ford 5.4 V8. Short tube headers provide relatively little power boost in 5.4 Triton-powered F150s. They are primarily utilized if you want more sound and are replacing your standard manifolds anyway. Long-tube 5.4 Triton headers are considerably superior in terms of performance. Long-tube headers enhance horsepower in the mid-to-high RPM range, making them ideal for performance.

Ford V8 headers are most effective when combined with additional exhaust mods such as a cat-back and X-pipe, as well as a tune. Upgraded headers can offer up to 25 horsepower more with the right tune.

Related : The 5.0 Coyote Engine Manual

5) Triton 5.4 Supercharger

Whipple 2.3L W140AX Ford 5.4L Supercharger Kit is a recommended 5.4 Triton Positive Displacement Supercharger Kit.

ProCharger recommends the 5.4 Triton Centrifugal Supercharger Kit. Triton 5.4 Supercharger Kit

Unless you want to spend a fortune on advanced N/A modifications, you’ll have to consider forced induction if you want to create much more than 400 horsepower. Both the 2-valve and 4-valve versions of the 5.4 Triton V8 were factory supercharged. Naturally, the highest horsepower was produced by the 5.4 models. This merely demonstrates that superchargers are an excellent technique to increase the power of the Triton. But there are a few things to consider.

To begin, consider which supercharger style is best suited to your application. For the 5.4 Triton, there are two types of supercharger kits available: centrifugal supercharger kits and positive displacement supercharger kits. When compared to a typical positive displacement arrangement, centrifugal superchargers from Paxton, Vortech, and Procharger will create more horsepower at higher RPM ranges and more at peak levels. Positive displacement superchargers, such as those made by Whipple/FRPP, Roush, and Saleen, create more horsepower and torque in the lower ranges than centrifugal superchargers.

Centrifugal supercharger kits are frequently less expensive because many are sold without an intercooler/aftercooler, although power output will reflect this. Because of the complexity involved in manufacturing the kit, positive displacement supercharger kits are sometimes more expensive, and they frequently include a standard intercooler.

Conclusion: The 5 Best 5.4 Triton Engine Upgrades

The Ford 5.4 Triton V8 engine is a tough and adaptable engine that powered the Ford F-Series throughout the 2000s. While the standard output of 235-250 horsepower from F-Series variants of the Ford V8 is nothing to sneer at, a number of 5.4 Triton engine improvements can provide significantly more power and torque.

Improving airflow is critical for improving performance if you want to keep your Ford 5.4 setup naturally aspirated. Upgrading the cold air intake as well as the long tube headers can result in a considerable increase in performance, increased fuel efficiency, and decreased exhaust restrictions. Bolt-on tweaks like this are an excellent method to get modest performance benefits at a low cost.

You’ll have to spend a little more money for more dramatic gains. While ECU tuning is far from the most expensive Triton V8 upgrade, having a dyno tune from a good shop can be very costly. That is, however, the best method to get the most out of your Ford V8. If you want performance at any price, 5.4 Triton supercharger kits are a terrific way to go. With the GT500 and SVT Lightning, Ford demonstrated that superchargers work wonders on the 5.4 V8, and the same is true for normal 5.4 Tritons.
