The 5 Most Frequent Chevrolet 5.7L LT1 Engine Issues. In 1991, the Gen II 5.7L LT1 350 was introduced. It is, in some ways, the successor to the Gen I LT1 350, however this engine was only produced from 1970 to 1972. There is also a Gen III LT1, which is a 6.2L EcoTec3 V8 built between 2014 and now. The LT1 was the forerunner to the LS1, which debuted in 1997.

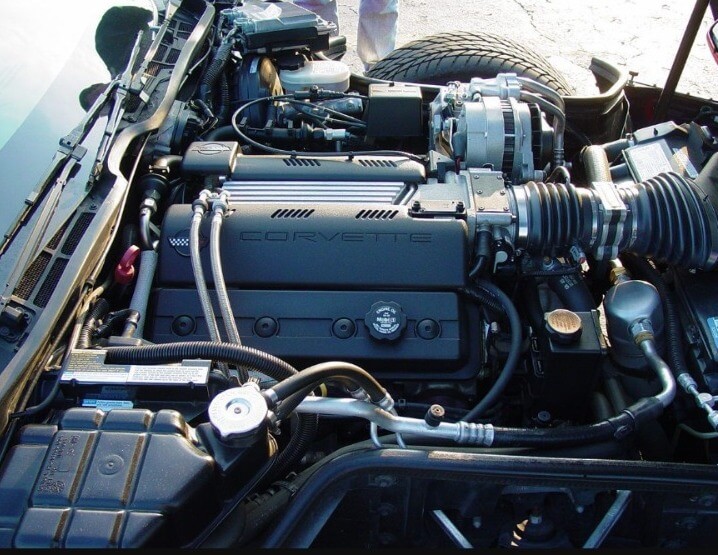

The LT1 350 is a 5.7L 2-valve pushrod V8 small-block with 260-300hp and 325-335lb-ft of torque. The engine comes in four various versions depending on the car, including the Y-body, F-body, B-body, and D-body. All variants used a cast iron block, with the exception of the Y and F bodies, which used aluminum heads rather than cast iron in the other two versions. The LT1 switched from a speed density sensor to a mass air flow sensor in 1994, and from batch fuel injection to sequential port injection. In the same year, the engine received a computer-controlled transmission.
The LT1 also has reverse-flow cooling, which means that the heads receive engine coolant before the block, which is the inverse of standard cooling systems.
In 1996, the LT4 was released as a high-performance variant of the LT1. The LT4 featured more aggressive camshafts, lighter valves, larger injectors, a high-performance crank, a higher-flowing intake manifold, and a higher compression ratio. The LT4 engine developed 330 horsepower and 340 pound-feet of torque and was only available in the 1996 Corvette Grand Sports, 1997 Camaro SLP SS, and 1997 Firebird SLP Firehawk. The total number of LT4s produced was less than 7,000.
5.7L LT1 350 Engine Model
LT1 Y-Body: 300hp and 330-340lb-ft of torque.
- C4 Chevy Corvette, 1992-1996
GM LT1 F-Body: 275hp and 325lb-ft until 1993-1995; 285hp and 325lb-ft after that. 335lb-ft in 1996-1997
- 1993-1997 Chevrolet Camaro Z28 and SS
- Firebird Formula/Trans Am/Firehawk 1993-1997
LT1 B-Body : 260hp and 330lb-ft
- Buick Roadmaster & Wagon, 1994-1996
- Chevrolet Impala SS and Caprice, 1994-1996
GM LT1 D-Body : 260hp and 330lb-ft
- Cadillac Fleetwood, 1994-1996
The 5 Most Frequent LT1 Engine Issues
The following are the most prevalent GM LT1 engine problems:
- Failure of the head gasket
- Failure of the coolant sensor
- The PCV valve (oil in intake manifold)
- Wires and spark plugs
This post will look at the 5 most common LT1 engine problems, as well as the symptoms and solutions. Because the LT1 is an older engine, it will almost certainly necessitate some extra care and maintenance. Despite a few flaws, the LT1 is a dependable engine. However, let’s get into the LT1 faults mentioned above before returning to reliability at the end of the paper.
1. OptiSpark LT1 Issues
Before we go into OptiSpark, let’s go over the distributor essentials. Distributors are ignition-related components that distribute electrical current from the ignition coil to the spark plug. Conventional distributors contain internal rotors that turn, and voltage is transferred to the spark plugs one at a time as the rotor turns. The disadvantage of old distributor technology was that the engine computer, or ECM, did not know which cylinder was firing until the rotor inside the distributor passed that cylinder’s fire point.
Until the LT1, small-block Chevy engines employed a “high energy ingition” distributor, sometimes known as HEI, which worked as described above. Chevy launched OptiSpark, a new distributor technology, for the LT1. OptiSpark was an electronic light-triggered distributor that sat beneath the cam-driven water pump in the bottom front of the engine. The OptiSpark sensor featured an LED light and a slotted spinning wheel and was situated at the front of the engine. The light would pass through the wheel and notify the ECM the location of each piston as well as which piston was firing next.
Finally, OptiSpark enabled more precise ignition timing and control under a variety of driving scenarios.
Issues with OptiSpark
The biggest issue with OptiSpark is that the distributor’s ventilation holes are too small. Because of the narrow vent holes, moisture accumulates within the distributor, eventually causing it to fail. Chevy altered the design somewhat in 1994, adding wider ventilation slots.
OptiSpark failure is still widespread, despite the wider ventilation holes. Because the distributor is placed in the lower front of the engine, it is exposed to road debris such as water, mud, and grime. Furthermore, when the water pump breaks, it usually takes the distributor with it, and radiator leaks frequently do as well.
Basically, because of its position in the engine bay, the OptiSpark was very likely to get water, coolant, or something else in it. Additionally, wet materials on an electrical component can easily malfunction.
Symptoms of OptiSpark failure
The following are signs of LT1 OptiSpark issues:
- Cylinder malfunctions
- Look for motor codes
- Erratic running
- Cautious pace
- Acceleration-related vibration
- Poor engine efficiency overall
Alternatives for Replacing OptiSpark
While 94+ OptiSparks are less prone to failure, it is still a frequent occurrence. Installing an aftermarket distributor is the best choice for replacement (MSD, BWD, Petronix, Dynaspark are common options). Aftermarket distributors have bigger bottom drain openings, vents for fresh air, and a moisture-prevention vacuum system. Furthermore, they are more weather resistant.
OptiSpark issues are among the most prevalent GM LT1 issues (if not the most common). There is no need to replace OptiSpark before it breaks, but if it does, we suggest that it be replaced with a quality aftermarket unit rather than an OEM one.
2. LT1 Overheating and Cylinder Gasket Failure
The LT1 motor does not tolerate heat well. Coolant leaks or cooling system failures are prevalent in these older engines (as with any old engine) and can contribute to engine overheating. Under high temperatures, the head gaskets, which rest between the heads and the block, are prone to failure. When engine temperatures exceed spec, the block and heads over-expand, causing the gasket to break.
When a head seal fails, air escapes from the combustion chambers, lowering air pressure and cylinder compression. It may also result in coolant and oil leakage. The end effect is decreased performance and maneuverability.
The only choice for replacement is to replace the head gasket. To avoid this problem, do not drive if the motor is ever overheating. Stop the vehicle immediately and have it towed until the cooling issues are resolved.
Head Gasket Failure Signs
The following are possible signs of GM LT1 head gasket failure:
- Exhaust vapor is white.
- Power loss and a dearth of acceleration
- Idling in a rough manner
- Leaks of oil or antifreeze around the head/block
- Inside the oil cap, there is a milky material.
Related : The PCV Valve Definition – What Is A PCV Valve?
3. Coolant Sensor Issues on the GM LT1
There are three coolant sensors on the LT1 engine. The first is a coolant level sensor, which is in charge of turning on the low coolant light on the dash when coolant levels are low. The second component is a coolant temp gauge sensor, which is in charge of controlling the coolant temperature gauge on the dashboard. The coolant temp sensor, which sends coolant temp readings to the PCM, is the most important sensor.
Failure of the first two sensors simply causes your dash’s low coolant light or coolant temp gauge to stop working, with no effect on driveability or performance. Failure of the coolant temp sensor, which is responsible for sending readings to the PCM, will cause performance and starting issues.
Fortunately, the coolant level sensor on the LT1 fails more frequently than the temperature sensor. When this sensor fails, the only thing you’ll notice is the low coolant light on the dashboard. If your coolant levels are not low and there are no coolant leaks, then your sensor is faulty.
Many people will simply unplug the sensor and deal with the light. It isn’t the cheapest sensor in the world at $85 but replacing it will eliminate the annoying light and give you peace of mind that if the coolant is actually low, you will know. The sensor is located next to the battery box on the radiator and is a simple DIY replacement. Some inexpensive aftermarket sensor options are available for around $20, but you get what you pay for.
LT1 PCV Valve Failure
Positive crankcase ventilation (PCV) is an abbreviation for positive crankcase ventilation. When an engine combusts, waste gas is released into the atmosphere via the exhaust system and tailpipes. Small amounts of this petrol, however, leak into the crankcase. When these gases enter the crankcase, they contaminate the oil and cause it to become sludgy, causing significant internal engine damage. Excessive waste gas in the crankcase can raise crankcase pressure and cause gaskets and seals to fail and leak.
Now, open the PCV valve. This valve is attached to the crankcase and allows these dangerous byproduct gases to escape. These gases are harmful to the environment because they are not burned. As a result, the PCV valve redirects these gases to the intake manifold, where they are burned in the combustion chamber and expelled into the atmosphere via the exhaust system.
When these gases return to the intake manifold, they pick up some oil mist. This causes oil to accumulate in your intake system, resulting in carbon buildup and restricted air flow.
Why does the LT1 have PCV issues?
Catch cans, which sit behind the PCV valve and catch any oil deposits in the gas before it is routed back to the intake system, are a common PCV system component. Essentially, this reduces the amount of oil that enters the intake system. The LT1 did not come equipped with a stock catch can.
LT1 PCV systems frequently become clogged and send a lot of oil back into the intake manifold, coating it in oil.
Symptoms of a PCV Valve / Oil in the Manifold
Symptoms of Chevy LT1 PCV valve issues include:
- Misfires in the cylinders
- AFRs that are lean
- There is a lot of oil in the intake manifold.
- Beginnings are difficult.
- Idling in a rough manner
- Oil-coated spark plugs
- Idling in a rough manner
- Options for Prevention
Installing an aftermarket catch can is the simplest way to resolve any PCV-related issues. The catch can will capture all of the oil from the crankcase gases, preventing it from entering the intake manifold and causing various performance issues, spark plug fouling, and so on.
5. LT1 Spark Plug and Spark Plug Wire Issues
The LT1 OptiSpark problem also causes numerous problems with the spark plug wires. Furthermore, PCV system problems frequently foul the spark plugs. As a result of these other common engine problems, spark plug and wire failure are common on the LT1 350.
When spark plugs become sludged up with oil, they foul quickly. Misfires, rough idling, and difficulty starting the engine are the most obvious signs of faulty plugs. You can usually tell if the plugs are bad by looking at them, but if they are coated in oil, that is a pretty good indication that they should be replaced and a catch can added. DIYing spark plug changes on the LT1 is not as simple as it is on most other cars, but it is doable for most people.
While the spark plugs are relatively simple, the spark plug wires are a bit more difficult. Here are some DIY wire replacement instructions.
Symptoms of Defective Spark Plugs and Wires
Among the symptoms of LT1 spark plug and wiring issues are:
- Idling in a rough manner
- Starting out is difficult.
- Jerking while accelerating
- Overall poor performance
Reliability of the Chevy LT1 Engine
Overall, the LT1 engine is very dependable. The OptiSpark distributor issue is the only one that is almost certain to occur on this engine. As long as the engine isn’t overheated, head gaskets are usually fine. The coolant sensor problem has no effect on performance or has any negative consequences. Furthermore, the PCV system, as well as spark plugs and wires, have preventative measures but can also be repaired very cheaply.
Finally, there aren’t any issues with the LT1 that will cause catastrophic engine damage or result in exorbitant repair bills. Not as much can be said about the LS1’s successor problems.
The block, rods, pistons, and heads are all quite strong and will not cause any issues at stock levels. Throwing some significant performance upgrades into the mix can cause some issues, but there isn’t a lot of aftermarket support for these engines.
The LT1 is capable of covering 200k miles while remaining reliable. Keep in mind, however, that these are older engines, and maintenance issues will arise. Water pumps, radiators, belts, hoses, and other common items that are 20 years or older fall into this “general maintenance” category.
