The Dodge Engine Trouble Code P0456

The Dodge Engine Trouble Code P0456. DTCs, or diagnostic trouble codes, are useful tools for drivers. They alert you if there is a problem with your vehicle and can save you from potentially destroying it. Modern automobiles are nearly entirely controlled by computers known as Engine Control Units (ECUs), Powertrain Control Modules (PCMs), and others. If these computers detect a fault, a DTC is generated and the check engine light (CEL) illuminates. The P0456 Dodge code is one of the most common DTCs.

The code is frequently referred to as the P0456 Dodge Code since it is very common on Dodge vehicles, and it refers to the Evaporative Emissions System (EVAP) system. This article will teach you everything you need to know about the Dodge P0456 code. We’ll explain what it means, which areas of your vehicle it affects, related diagnostic codes, and, most crucially, how to repair your vehicle if this DTC appears. Let’s get this party started.

The Dodge Engine Trouble Code P0456

DTC P0456 Dodge Code Definition

P0456 is a Dodge code that means “Evaporative Emission Control System (EVAP) Minor Leak Detected.” The code refers to the EVAP system in your vehicle. The goal of the EVAP system is to help minimize emissions by stopping gasoline vapors from exiting your fuel system and fuel tank.

The EVAP system is described in detail below. During time, fuel vapors collect in your fuel tank and are absorbed by your charcoal canister, which works as an absorbent filter. The vent valve, which admits outside air into the charcoal canister, is also part of the EVAP system.

When the charcoal canister on the fuel tank is full with gas vapors, the vapors are sent through EVAP lines to the intake manifold. The vapors are then returned to the manifold via a purge valve, where they can be burned instead of being released into the atmosphere. While this isn’t optimal for performance, it significantly cuts harmful pollutants.

If your vehicle displays a P0456 Dodge DTC, it implies that there is a leak somewhere in your EVAP system. Your ECU controls all aspects of the EVAP system. The ECU tests the EVAP system as part of its usual operations to ensure that it is working properly and not leaking. If your EVAP system fails the test, a DTC code, usually P0456, displays.

This code suggests that the leak is minor rather than large, thus it is not a major urgent worry.

P0456 Dodge DTCs that are related

The following is a list of all DTCs associated with the Dodge P0456 Code:

  • P0442 – Detected Evaporative Emission Control System Leak (Small Leak)
  • P0455 – Evaporative Emission Control System Detected Massive Leak
  • P0457 – Detected Evaporative Emission Control System Leak (Fuel Cap Loose/Off)

On a Dodge, there are approximately 30 DTC for the EVAP system alone. The EVAP system DTC sequence begins with P0440 and ends with P0469. The majority are related to the purge control valve or the vent control valve. There are various other EVAP DTCs that are specific to leaks.

As you can see, the P0442 and P0455 Dodge codes are nearly identical. The P0442 normally indicates a vapor leak, while the P0455 implies a major leak. The P0457 code indicates that the leak is most likely caused by a loose gas cap. Several DTCs for the EVAP system might occur at the same time, sometimes related to the same issue.

Common P0456 Code Symptoms

The following are the most prevalent P0456 Dodge code symptoms:

  • The EVAP System DTC
  • Engine Check Light
  • Reduced fuel economy
  • Inside the cabin, there is a strong odor of gasoline.
  • Emissions odor within the cabin

If your EVAP system is malfunctioning, you won’t notice any changes in drivability. Most consumers are unaware of a problem until the check engine light illuminates and the DTC is read.

You may detect a faint stench of fuel due to potential leakage from the charcoal canister, or you may detect the rotten odor of unfiltered emissions from the fuel system. Apart from that and the DTC, there is no way to detect if you have an EVAP leak.

Dodge Code Severity Level P0456

Severity Level: Low to Intermediate – Get rectified as soon as possible, but you can drive till then.

The only system that the P0456 deals with is the EVAP, which has no effect on drivability. The main disadvantage of a P0456 classification is that it may result in greater emissions output from your vehicle. Driving with a malfunctioning engine will not harm your drivability or engine. Furthermore, this code is for a minor leak in the EVAP system, which is obviously less serious than a DTC for a major leak.

While your automobile will still operate normally, you may notice an increase in gasoline usage because some of it is leaking. Also, the pollutants contribute to climate change, increasing the frequency of extreme weather events and thus lowering the number of days your car may rip up the pavement.

While you are not required to pull over immediately if you receive the P0456 code, you should do so as soon as possible. It’s also crucial to remember that an EVAP DTC will prevent your vehicle from passing emissions testing, so if you need to register your car with an emissions test, you’ll need to clear and repair any EVAP DTCs that are present.

Common Reasons of P0456 Dodge Code

The following are the most prevalent reasons of the Dodge code P0456:

  • Remove the gas cap.
  • Canister of charcoal that is defective or leaks
  • faulty/leaking purge control valve
  • faulty/leaking vent control valve
  • Fuel tank pressure sensor failure
  • Pump for detecting leaks that is defective
  • Fuel tank or fuel pump failure
  • EVAP hose damage or loss

As previously stated, the ECU checks the EVAP system on a regular basis to ensure that everything is working properly and that there are no leaks. This usually happens when the automobile is turned off and the fuel level in the tank is between 15 and 85%. The P0456 Dodge code is one of the most common that appears when the EVAP system fails a series of leak tests.

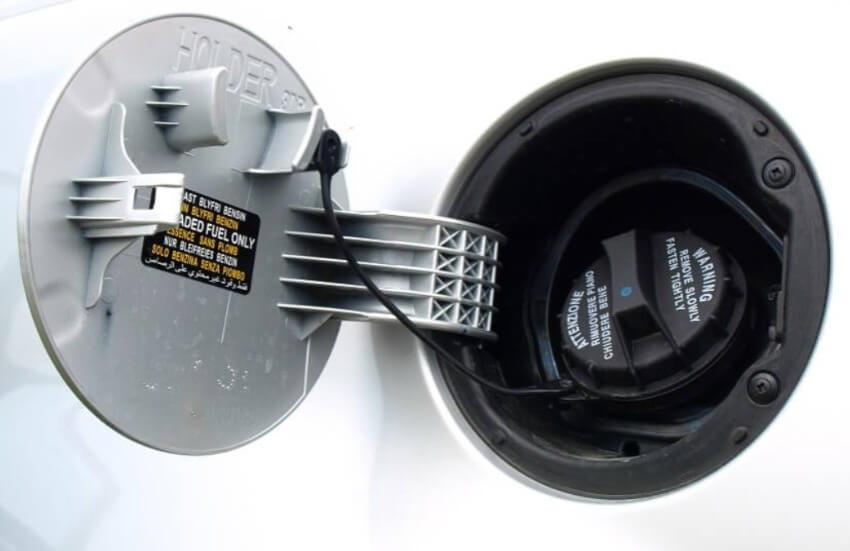

A loose or damaged gas cap is by far the most prevalent cause of an EVAP failure and P0456 code. The EVAP test will fail if the seal between the gas cap and the automobile is breached, and the DTC will appear. A problem with the purge control valve or the vent control valve not sealing is another common cause.

Other less common causes include fuel tank and in-pump fuel pump damage, as well as a faulty leak detecting pump, faulty fuel tank pressure sensor, or a faulty/old charcoal canister. If your EVAP hoses are cracked, damaged, or loose, the P0456 Dodge code will show. They are directly attached to the intake manifold and can be destroyed by heat, mileage, the elements, or vermin.

The Dodge Engine Trouble Code P0456

How to Diagnose and Repair the P0456 Error Code

Difficulty of diagnosis and repair: Moderate

Diagnosis and repair of the P0456 DTC are rated as intermediate in difficulty. You don’t have to be a trained mechanic to perform it, but you should have some experience working on cars. For the most part, you should have a skilled specialist look at this. If you believe you are capable, though, continue on for a step-by-step approach to diagnosing and fixing.

The first step is to ensure that you are tracking the P0456 DTC and not another EVAP DTC by using an OBD-II scanning equipment to confirm the precise P0456 DTC. You don’t want to waste time and money attempting to solve the wrong problem.

Step-by-Step Instructions

After validating the right DTC, you’ll want to determine what’s producing the leak and where it’s located. A loose or damaged gas cap is the most likely reason.

Inspect the gas cap first to ensure that it is 1) firmly fastened and 2) the seal is not damaged. If you detect either of these issues, be sure to secure the gas cap or order a new one if the old one is broken. Replace the gas cap and clear the DTC; if it returns, the problem is elsewhere.

Next, inspect the intake manifold for any visibly damaged, loose, or broken EVAP hoses. Replace or tighten the hose if it is damaged, and clear the DTC. If it returns, the problem is somewhere else.

Doing a smoke test on the P0456

Following the inspection of the gas cap and EVAP hoses, do a smoke test to inspect the purge control valve, vent control valve, and the remainder of the EVAP system, including the hoses and charcoal canister. A smoke test is a pressured test that employs smoke to pinpoint the location of a leak. This is the most effective technique to evaluate the complete EVAP system for leaks. Check out the video below for instructions on how to create a smoke tester and test the EVAP system.

After determining the source of the leak, replace the component and clear the DTC code. To totally eliminate the leak or leaks, you may need to replace various pieces. Take in mind that the P0456 code indicates a little leak, so it may take some thorough inspection to locate it. This is why a smoke test is preferable, since it allows you to swiftly test the entire system while using the smoke as a visual help for the leak.

Congratulations, after locating and repairing the leak, your P0456 code should be clear and not return.

P0456 Expenses of Diagnosis and Repair

P0456 Dodge code repair is relatively affordable. Decent handheld scanners for the OBD-II system range in price from $100 to $500 and are an essential purchase for any automobile owner. Once purchased, you are covered for numerous vehicles and should cover any DTC you may encounter, albeit certain DTC are unique to the manufacturer. Several OBD-II scanners can also reset DTCs in addition to reading them.

If your gas cap is faulty, a new one costs between $20 and $60, making it a relatively simple repair. EVAP hoses are also relatively affordable, typically costing less than $20. A genuine OEM replacement for the purge control valve and vent control valve should cost no more than $50. Charcoal canisters are also reasonably priced, with a new one costing around $50.

If you can repair it yourself, the cost should be less than $100. But, if you need to take it to a professional, labor prices will rise. Most businesses will charge 1-2 hours of labor for a P0456 diagnosis and repair, with fees ranging from $100 to $130 per hour depending on where you live.

Related : The P0171 Error Code : Symptoms – Causes and Solutions

P0456 Dodge Code Frequently Asked Questions

What does the P0456 Code indicate?

The P0456 error code signifies “Evaporative Emission Control System (EVAP) Little Leak Detected” and indicates that your ECU has detected a minor leak in your EVAP system. When the engine is turned off, your ECU performs tests to ensure that the EVAP system is operational and not leaking. If the EVAP system fails a series of leak tests, a number of DTCs can arise, the most common of which is P0456. Because it regularly affects Dodge automobiles, it is also known as the P0456 Dodge code.

What is the most prevalent reason for the P0456 error code?

A loose or damaged gas cap that cannot properly seal is the most typical cause of the P0456 DTC. Most of the time, simply replacing the gas cap is sufficient to resolve the issue and maintain the code clean. If the gas cap is not the issue, the next most common causes are a faulty purge control valve or a faulty vent control valve.

How much does it cost to repair the P0456 DTC?

If you repair the problem yourself, you should be able to do so for less than $100. If you need to take it to a repair, anticipate to pay between $150 and $300 for components and labor. This is a moderately complex repair operation that should not be attempted by inexperienced automobile owners.

Can I drive if the P0456 DTC is present?

Yes, you can drive when the P0456 DTC is present. It just signifies a minor leak, and driving with it will not harm your engine or vehicle. But, you may notice increased fuel usage and potentially smell fuel or bad exhaust scents as a result of the leak. Furthermore, increased emissions contribute to climate change, which is harmful to the ecosystem.
