The Chevrolet 427 Engine Issues – Performance and Reliability

The Chevrolet 427 Engine Issues – Performance, and Reliability. The 427 engine is a 7.0L big-block V8 built by Chevrolet from 1966 to 1969. The Mark IV engine family includes the 427, 366, 396, 402, and 454.

The most sought variant of the 427 is the L88. Featuring a forged crankshaft and rods, lightweight aluminum heads, four-barrel carb, the L88 is the most power capable of the engines with the exception of the limited production ZL1 engine. With the exception of an aluminum block and 30% more free flowing heads, the ZL1 427 was nearly identical to the L88.

Despite the ZL1’s factory power statistics of 430hp, it is estimated that the ZL1 actually produced closer to 550hp.

The ZL1 engine cost around $5,000 more. While this may seem insignificant in today’s world, it more than doubled the cost of the car in 1969. With only 216 L88 Corvettes built, and only a few equipped with the ZL1, these Corvettes typically command multi-million dollar auction prices.

The Chevrolet 427 Engine Issues - Performance and Reliability

Crate Engine ZZ427

Much of the current buzz surrounding the 427 revolves around the ZZ427-480, a modern performance crate engine supplied by Chevy. The ZZ427 is a performance-oriented upgrade of the L88 427. All forged internals, hydraulic rollers, four-bolt mains, and a cast-iron block characterize the ZZ427.

The current modifications on the ZZ427, based on the L88, have raised performance to 480hp and 490lb-ft of torque. While the ZL1 and L88 engines were intended for high-performance racing, the ZZ427 has a lower compression ratio, making it a street-worthy performance engine.

The bore was slightly lowered to 4.25′′, but the stroke was slightly raised to 3.766′′. The crank and rods are made of forged steel, while the pistons are made of forged aluminum. Hydraulic roller lifters have taken the role of solid tappet lifters. The ZZ427 has aluminum heads and a cast-iron block just like the L88.

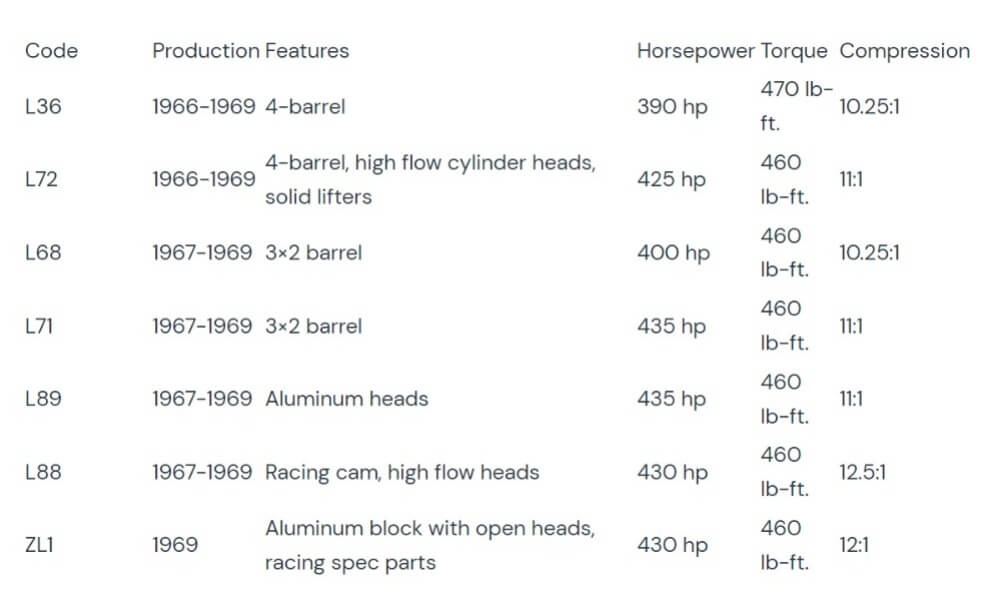

Chevrolet 427 Engine Specifications

The following are the specifications for the Chevrolet 427 7.0L big block engines:

Chevy 427 Engine Specs

Automobiles powered by the 427 engine

Chevrolet 427 engines were available in the following years and models:

  • 1966-1969 Chevrolet Biscayne
  • 1966-1969 Chevrolet Caprice
  • 1966-1969 Chevrolet Impala
  • 1966-1969 Chevrolet Corvette
  • 1968-1969 Chevrolet Camaro

Chevrolet 427 Performance Capabilities

Before we get into the performance possibilities of the old school 427s and the ZZ427, we need to establish a baseline. Until around 1971, car manufacturers measured horsepower using gross SAE standards rather than net SAE standards. Gross power is simply engine power on an engine stand with no engine-driven equipment such as water pumps, alternators, and so on. Furthermore, it typically has open headers and no restrictive exhaust systems. When you install the engine in a car with all the appropriate components, it eventually produces a horsepower number that is unrealistic.

The L72 engine was rated at 425hp but dynoed at roughly 290whp. 290hp at the wheels is probably closer to 350hp at the crank than the stated 425hp. Hence, while the ZZ427 engine doesn’t appear to produce much more power than its 50-year-old predecessor, it actually produces much more power when the gross ratings of the old 427s are compared to the net ratings of the ZZ427.

Furthermore, because the L88 and ZL1 are multi-million dollar engines with limited production, we’ll discuss the performance potential of the lower-end 427 engines. The most prevalent 427s still in use today are the L71 and L72.

427 L71 & L72 Performance

While not as performance-oriented as the L88 and ZL1, the L71 and L72 engines were nonetheless very capable. These engines were top of the line in terms of performance in the late 1960s, producing 425 gross horsepower and going 0-60mph in 5.6 seconds.

The 427 has a power output of around 500whp. Nevertheless, it does necessitate a number of improvements, including a forged steel crank, h-beam rods, and forged pistons, which did not come standard on the L88 and ZL1. Besides from these internal changes, you’ll need almost every bolt-on modification imaginable, as well as fueling upgrades.

Finally, these older engines are capable of providing substantial power, but at a high cost.

Performance of the ZZ427

The ZZ427 crate engine will set you back $10,000 to $12,000 only for the engine. The ZZ427 is constructed for power, with a robust cast-iron block and complete forged internals. While the stock horsepower is 480hp, a few easy bolt-on upgrades can push this engine to the next level. Furthermore, the ZZ427 is thought to be undervalued from the factory, with entirely stock engines dynoing at 525hp at the crank.

While these engines can produce close to 1000whp with the stock block and internals, many performance enthusiasts prefer VortecPro engines to the ZZ427. The VortecPro engines provide more horsepower at a lower cost.

Chevrolet ZZ427 Engine Issues

A few of the most common concerns with the Chevy 427 big block engine include:

  • Excessive use of oil
  • The Head Gasket

We’ll look at these engine issues in detail in the next sections. It’s worth noting that the original engines are more than 50 years old. With that type of age, the Chevy 427 requires some extra care, and practically every ailment is fair game on an engine that ancient.

1) Chevy 427 Excess Oil Consumption

The ZZ427 is known to consume almost a quart of oil every 100 miles, which is pretty high. According to Chevy and GM, such oil usage is common on their big-block engines. While excessive oil consumption is thought to be somewhat usual, faulty head gaskets and cracked heads are other common problems that plague the ZZ427 and can result in excessive oil consumption.

Oil blow-by is one of the consequences of oil usage. Blow-by coats engine components with oil and fuel, reducing efficiency and performance. When the cylinder walls and pistons wear down, more and more oil leaks into the combustion chamber, causing engine knock.

The Chevrolet 427 Engine Issues - Performance and Reliability

2) Failure of the 7.0L Big Block Head Gasket

The heads are sealed to the engine block by head gaskets. Gaskets on any engine wear down over time and produce oil leaks, necessitating replacement. However, whereas a standard head gasket should last over 150,000 miles, the ZZ427 is known to go through head gaskets every 10,000 miles or less, rather than hundreds.

The most common cause of this issue is incorrectly torqued head bolts. Excessive stress is placed on the gasket when the heads are over or under torqued, causing it to fail.

Related : The Three Frequent Nissan VR30DDTT Engine Issues

427 Engine Dependability

The old school 427s are approaching 50 years of age. As with anything, difficulties will come. With that being said, the block, internals, and other major engine components are sturdy and shouldn’t create any difficulties at stock power levels. Given the age of the stock components, you can expect different block and internal improvements if you apply more power to it.

With a number of issues that big-block crate engines are prone to, the ZZ427 engine is not a fan favorite among enthusiasts. Reliability difficulties with cracked heads, head gaskets, and oil consumption. Along with less-than-impressive power ratings for the price, cause many performance aficionados to search elsewhere for big-block crate motors. It’s not to suggest that the ZZ427 isn’t or can’t be reliable, but it will generally require some considerable maintenance and improvements to lay down big power reliably.
